CGA
Cylinder Connections
Description

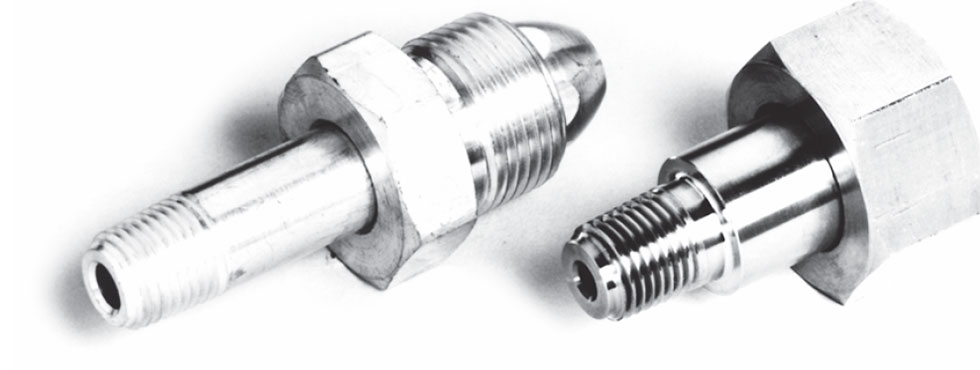

The standard cylinder connections shown in the table below convert CGA cylinder valve outlets to 1/8” NPT male, or 1/4” NPT male, or 1/4” face seal male.
Caution: When changing the gas service of a regulator or gas system by changing the cylinder connections, the regulator or system must be thoroughly cleaned prior to the introduction of the new gas. It is strongly recommended that you consult with your supplier before attempting any conversion to confirm that the intended conversion can indeed be performed safely, or that such equipment be returned to your supplier for conversion.
How To Order
| CGA No. | Chrome Brass | Brass 1/4" NPT | St. St. 1/4" NPT | St. St. 1/4" Face Seal | Monel® 1/4" NPT |
|---|---|---|---|---|---|
| 170 | X* | - | X* | - | - |
| 180 | X* | X* | X* | - | X* |
| 240 | - | - | X | - | - |
| 280 | - | X | X | - | - |
| 290 | - | - | X | - | - |
| 296 | X | X | - | X | - |
| 300 | - | X | - | - | - |
| 320 | X | X | X | - | - |
| 326 | X | X | X | X | - |
| 330 | - | X | X | X | X |
| 346 | X | X | X | - | - |
| 347 | - | - | X | - | - |
| 350 | X | X | X | X | - |
| 510 | X | X | X | X | - |
| 540 | X | X | X | X | - |
| 580 | X | X | X | X | - |
| 590 | X | X | X | X | - |
| 622 | - | X | X | - | - |
| 626 | - | - | X | - | - |
| 660 | - | X | X | X | X |
| 670 | - | - | X | X | X |
| 677 | - | - | X | - | - |
| 678 | - | - | X | X | - |
| 679 | - | - | X | X | X |
| 680 | - | X | X | - | - |
| 695 | - | X | X | - | - |
| 702 | - | - | X | - | - |
| 703 | - | X | X | - | - |
| 705 | - | - | X | - | - |
| *Fitting has 1/8" NPT male instead of 1/4" NPT male | |||||
CGA
Connections Gaskets
Description
Some standard connections and all DISS connections require a gasket to achieve a leak-free connection. Gaskets should be changed each time the connection is attached to the cylinder valve.
HOW TO ORDER
| Model | Description |
|---|---|
| CGA110WA | Teflon gasket for CGA 110 & 679 |
| CGA170WA | Teflon gasket for CGA 170 |
| CGA180WA | Teflon gasket for CGA 180 |
| CGA 240 WA | Teflon gasket for CGA 240 |
| CGA320/330WA | Teflon gasket for CGA 320 & 330 |
| CGA660/670WA | Teflon gasket for CGA 660 & 670 |
| CGA 678/680WA | Teflon gasket for CGA 678 & 680 |
| CGA679PB | Lead washer for CGA 679 |
| CGA 705WA | Teflon gasket for CGA 705 |
| DISS-NI | Nickel gasket for CGA 632 thru 726 |
| DISS-K | Kel-F gasket for CGA 632 thru 726 |
