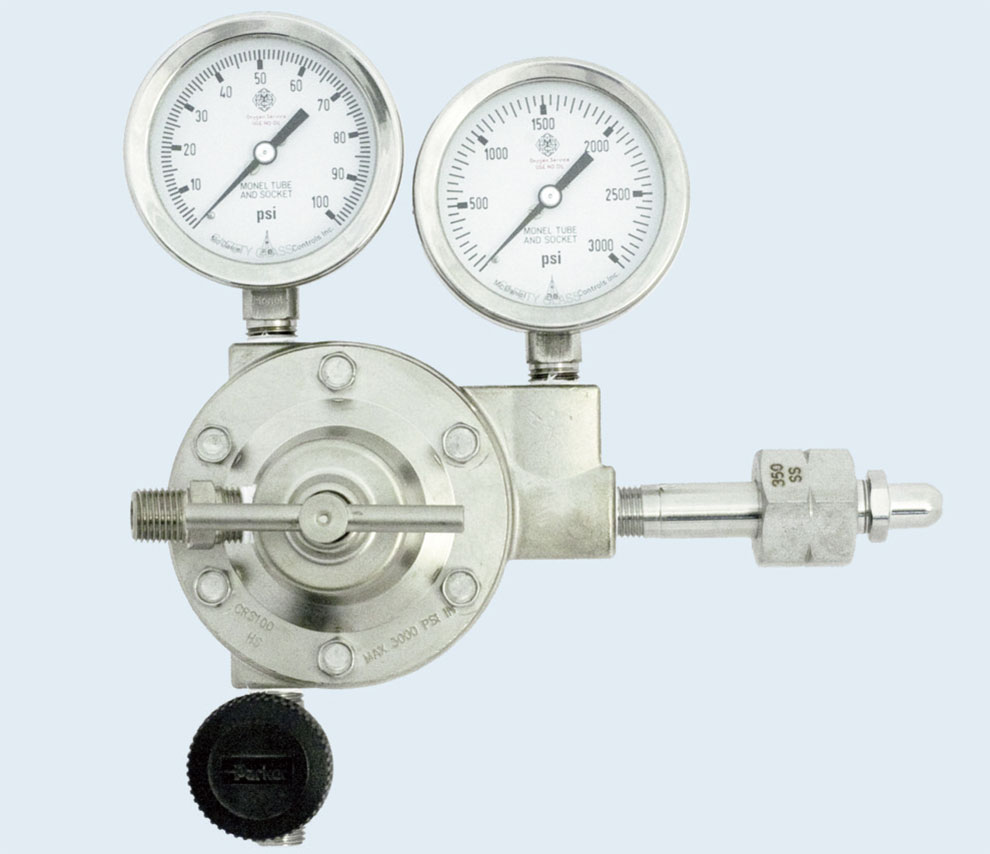

Corrosive Gas, 1-Stage Regulator
Series 3470

Description

The Series 3470 single stage regulators are specifically designed and constructed for use with difficult to handle gases, such as chlorine and hydrogen chloride. The large monel nozzle and PCTFE® seat combined with the tied diaphragm assembly greatly reduces the possibility of failure due to creep so common in other corrosive gas regulators. A Teflon-lining on the stainless steel diaphragm forms a protective coating to extend regulator life. The electroless nickel-plated brass body is a major contributor to the economical nature of this regulator while providing corrosion protection.

Features

  • Four built-in PCTFE seats provide convenient maintenance and long regulator life.
  • Large Teflon® lined 316L stainless steel diaphragm.
  • Monel valve with Teflon packing installed on outlet.
  • Captured vent bonnet provides for save venting in the event of a diaphragm failure.

Applications

The 3470 Series regulators are ideal for use with many corrosive gases, such as chlorine, hydrogen chloride, boron trichloride, and boron triflouride. They are also useful for controlling the pressure of high concentration gas mixtures containing these corrosive gas components.

NOTE: See pages 130-146 for gas data and equipment recommendations.

ECONOMICAL CORROSIVE GAS HIGH PURITY LINE REGULATOR Series 3451L

Materials of Construction

  • Body: 316 stainless steel
  • Nozzle Assembly: 316 stainless steel
  • Diaphragm: stainless steel
  • Seat: Kel-F®
  • Diaphragm Seal: Teflon®
  • Inlet Filter: stainless steel
  • Bonnet: nickel plated aluminum
  • Gauge: stainless steel
  • Knob: aluminum - black anodized

Specifications

  • Max. Inlet Pressure: 3000 psig
  • Operating Temp. Range: -40° to +185°F.
  • Flow Coefficient (Cv): 0.08 standard
  • Inlet and Outlet: 1/4" NPT female
  • Outlet Valve Standard

How To Order***

Model
Number*
Del. Press. Range
psig
Del. Press. Gauge
psig
Inlet Press. Gauge
psig
3470-80-CGA* 5-80 0-100 0-3000
3470-160-CGA* 10-160 0-300 0-3000
3471-80-CGA* 5-80 0-100 0-1000
3471-160-CGA* 10-160 0-300 0-1000
3472-80-CGA* 5-80 0-100 0-300
  • *Specify CGA Connection Number when ordering.

WARNING: A Purge assembly (see pages 96 and 97) is strongly suggested when using the above regulators with any corrosive gas.
